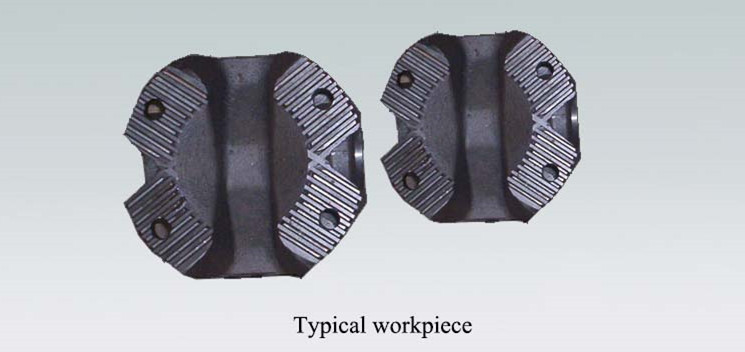

The machine is mainly used to process all kinds of spline, including spur and helical, cylinder piston automobile redirector and worm rack, especially suitable for the mass production of manufacturing industry of machinery, lift and machine tool.
The rotation speed of cutter tool is adjustable with stepless. The cutting speed, cycle times and cutting depth can be set discretionarily.
The machine is equipped with auxiliary cutter-tool-installation device and mainly servo axes are fully closed loop.
|
Specifications
|
YK8532
|
|
Max. machining module（mm）
|
12
|
|
Max.machining length（mm）
|
300
|
|
Max.workpiece diameter（mm）
|
30
|
|
Max.workpiece length（mm）
|
1000
|
|
Main spindle speed（rpm）
|
40~350
|
|
Milling cutter diameter（mm）
|
310~170+2*Tooth Depth
|
|
Main spindle motor power（Kw）
|
30
|
|
Max.diameter of spindle cutter dolder（mm）
|
60
|
|
Max.travel of Z-axis（mm）
|
400
|
|
Max.feed speed of Z-axis（mm/min）
|
500
|
|
Max.travel of Y-axis（mm）
|
-
|
|
Max.feed speed of Y-axis（mm/min）
|
-
|
|
Max.machining helical angle
|
±30°
|
|
Cutter width（mm）
|
300
|
|
Max.travel of X-axis（mm）
|
500
|
|
Max.feed speed of X-axis（mm/min）
|
1875
|
|
Total power（kw）
|
45
|
|
Total weight（Kg） approx.
|
11000
|
Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
|
Standard Accessories
|
|
Numerical control system: 828D Siemens
|
|
Spindle frequency inverter: Schneider
|
|
One set hydraulic station: Outside
|
|
One set cooling and chip conveyor: Outside
|
|
Centralized auto-lubrication: By Intermittent
|
|
Electric cabinet: Outside
|
|
The cutter adaptor:(Morse 4#)2 pieces, Φ50mm
|
|
Half cover
|
|
Accessories box
|
|
Sizing block
|
|
Optional Accessories
|
|
Worktable automatically adjust(30°) or digital display
|
|
Magnetic filter unit
|
|
Automatic workpiece loading and unloading device
|
|
Full cover
|
