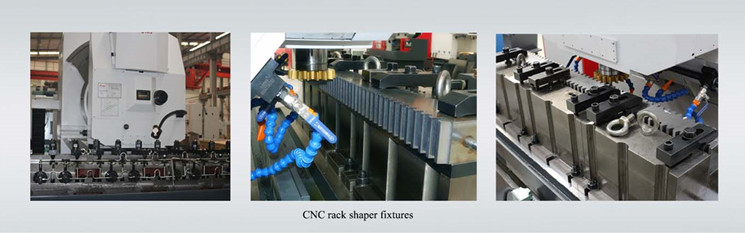

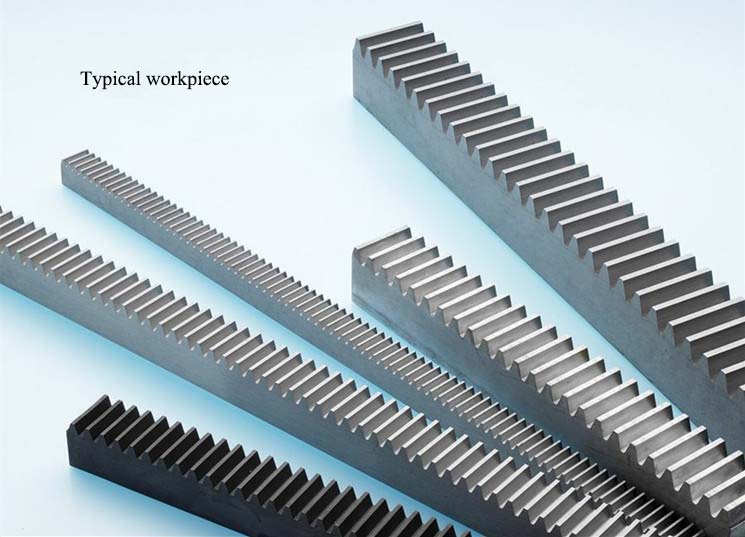

The machine is widely used to machine all kinds of spur and helical spline, especially suitable for the mass production of manufacturing industry of machinery, lift and machine tool. It can also be used for the singleton or small batch production of manufacturing industry.
The stroke speed of main spindle of the cutter tool is adjustable with stepless.
The feed speed, cycle times and cutting depth can be set discretionarily.
The speed can be changed when convert rough machining to finishing and the cutter can stop at its up-most or middle position automatically.
|
Specifications
|
YK58200X3
|
|
Max.length straight teeth（mm）
|
2000
|
|
Max.module（mm）
|
12
|
|
Max.angle of obliqulity
|
±30°
|
|
Max.spindle stroke length（mm）
|
160
|
|
Stroke of main speed（str/min）
|
60~300
|
|
Adjusting amount of cutter travel（mm）
|
50
|
|
Tangent feed speed of worktable（mm/min）
|
0~1000
|
|
Cutter relieving（mm）
|
≥0.5
|
|
Cutter arbor diameter（mm）
|
31.743
|
|
Worktable size（mm）
|
2150×490
|
|
Distance between cutter spindle and worktable center（mm）
|
-100~270
|
|
Distance between cutter mounting face and worktable surface（mm）
|
160~370
|
|
Total power（kw）
|
30
|
|
Total weight（Kg） approx.
|
13000
|
Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
|
Standard Accessories
|
|
CNC system: SIEMENS 828D
|
|
Spindle frequency inverter: Schneider inverter
|
|
Hydraulic system: Outside
|
|
Cooling system and chip conveyor system: Outside
|
|
Centralized lubricating system: batch-type
|
|
Electric cabinet: Outside,left side
|
|
Standard cutter adaptor:Φ31.743
|
|
Accessories box with machine
|
|
Half cover
|
|
Sizing block
|
|
Optional Accessories
|
|
The hydraulic clamp
|
|
Cutter adaptor
|
|
Full cover
|
