It is mainly applied to machine midsize internal and external cylindrical gear.

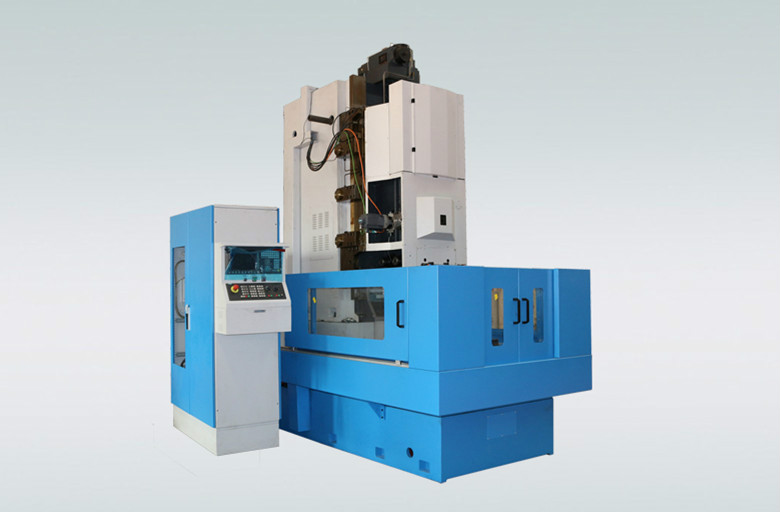

The machine is a CNC gear shaper which has 4 axes with the simultaneous movement of 3 axes.
The machine possesses the function of cutter head lifting, the worktable adopt rolling bearing structure. The main motion is driven by AC frequency inverter motor, the radial feed achieved by columnar movement and driven by AC servo motor during cutting, because of the function of cutter head lifting, this kind of machine especially suitable for cutting deep hole gears with internal tooth, and enhance the efficiency of cutting duplex gear and the different depth of internal or external gear. Users can set up the cycles and radial feed of each cycle according to demand.
|
Specifications
|
YKT5180A
|
|
Max.diameter of external（mm）
|
800
|
|
Max.diameter of internal（mm）
|
1100
|
|
Max.module（mm）
|
12
|
|
Max.face width（mm）
|
250
|
|
Max.stroke length（mm）
|
270
|
|
Stroke speed（str/min）
|
30~240
|
|
Cutter relieving（mm）
|
≥0.5
|
|
Axial slide travel range of cutter head
|
500
|
|
Adjusting amount of stroke position（mm）
|
-
|
|
Spindle diameter（mm）
|
120
|
|
Diameter of worktable（mm）
|
900
|
|
Sloping angle of worktable
|
-
|
|
Distance between axis of cutter spindle and worktable（mm）
|
-0~640
|
|
Distance between the nose of spindle and worktable surface（mm）
|
200~970
|
|
Total power（kw）
|
38
|
|
Total weight（Kg） approx.
|
21000
|
Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
|
Standard Accessories
|
|
CNC system: 828D Siemens
|
|
Spindle frequency convertor: Schneider
|
|
One set hydraulic device: External,behind machine
|
|
One set cooling and chip conveyor: External,right side
|
|
Centralized lubricating system: By intermittent
|
|
Electrical cabinet: External,left side
|
|
Standard cutter adaptor: Morse 5# 3 pieces
|
|
Half cover
|
|
Accessories box
|
|
Machine sizing block
|
|
Optional Accessories
|
|
Hydraulic fixtures
|
|
Cutter adaptor
|
|
Full cover
|
