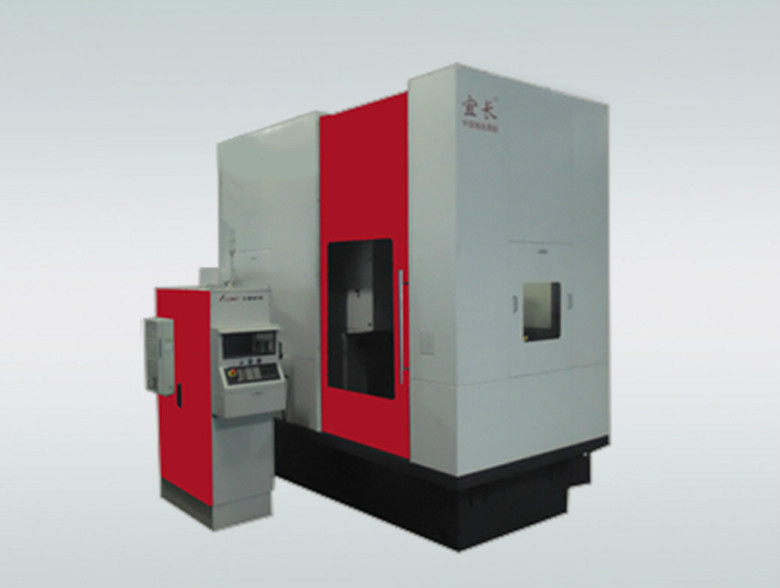

This kind of machine is mainly used for machining plate type of midsize, including internal or external cylindrical gear and helical gear.

The main motion is driven by AC frequency inverter motor. Both circular feed(X axis) and radial feed (C1 or C2 axis) are driven by AC servo motor. What’s more, users can set up the cycles and the depth of cut for every cycle according to the demand of cutting.

The machine has the mechanism of cutter relieving in oblique direction and can realize the small number of teeth cutting.

Specifications	YK5180B×3	YKC5180B×3	YK5180C
Max. diameter of external（mm）	800	800	800
Max. diameter of internal（mm）	1100	1100	1100
Max. module（mm）	12	12	12
Max. face width（mm）	250	280	250
Max. stroke length（mm）	270	300	270
Stroke speed（str/min）	30～300	30～300	30～300
Cutter relieving（mm）	≥0.5	≥0.5	≥0.5
Axial slide travel range of cutter head	-	-	-
Adjusting amount of stroke position（mm）	50	50	50
Spindle diameter（mm）	100	100	100
Diameter of worktable（mm）	900	900	900
Sloping angle of worktable	-	-	-
Distance between axis of cutter spindle and worktable （mm）	0～750	0～750	0～750
Distance between the nose of spindle and worktable surface（mm）	300～620	270～620	300～620
Total power（kw）	22.5	22.5	27
Total weight（Kg） approx.	14000	14000	14000

Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
