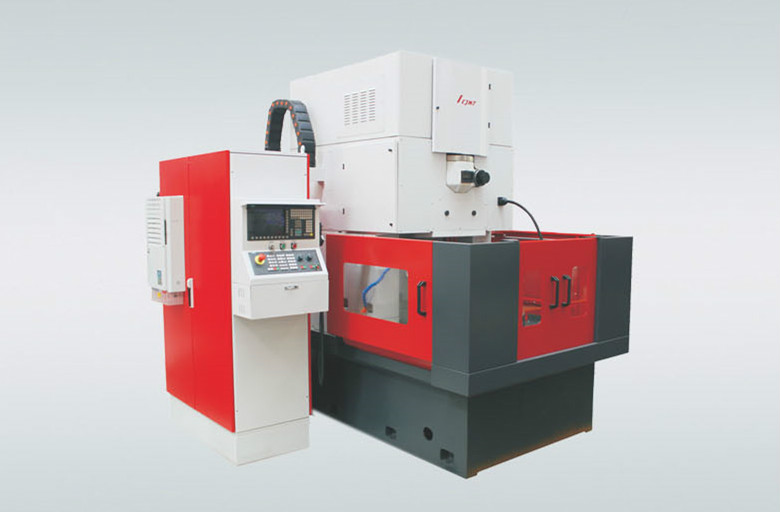

This kind of machine is mainly used for machining plate type of midsize, including internal or external cylindrical gear and helical gear.The worktable of YKD5150×3 can slant an angle of ±10,which is used for machining reversed-taper gear.

The main motion is driven by AC frequency inverter motor. Both circular feed(X axis) and radial feed (C1 or C2 axis) are driven by AC servo motor. What’s more, users can set up the cycles and the depth of cut for every cycle according to the demand of cutting.

The machine has the mechanism of cutter relieving in oblique direction and can realize the small number of teeth cutting.

The chip of the machine is discharged through the central hole.

YK5150D×3 and YKC5150D×3 gear shaping machine are both with central hole to remove chip.

Specifications	YK5150D×3	YKC5150D×3	YKD5150×3
Max.diameter of external（mm）	500	500	5000
Max.diameter of internal（mm）	600	600	600
Max.module（mm）	10	10	10
Max.face width（mm）	140	140	140
Max.stroke length（mm）	160	220	160
Stroke speed（str/min）	40～400	30～300	40～400
Cutter relieving（mm）	≥0.5	≥0.5	≥0.5
Axial slide travel range of cutter head	-	-	-
Adjusting amount of stroke position（mm）	50	50	50
Spindle diameter（mm）	100	100	100
Diameter of worktable（mm）	700	600	700
Sloping angle of worktable	-	-	±10°
Distance between axis of cutter spindle and worktable （mm）	-40～400	-40～400	-40～400
Distance between the nose of spindle and worktable surfac（mm）	320～530	260～530	250～460
Total power（kw）	22.5	22.5	22.5
Total weight（Kg） approx.	10000	10000	10000

Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
